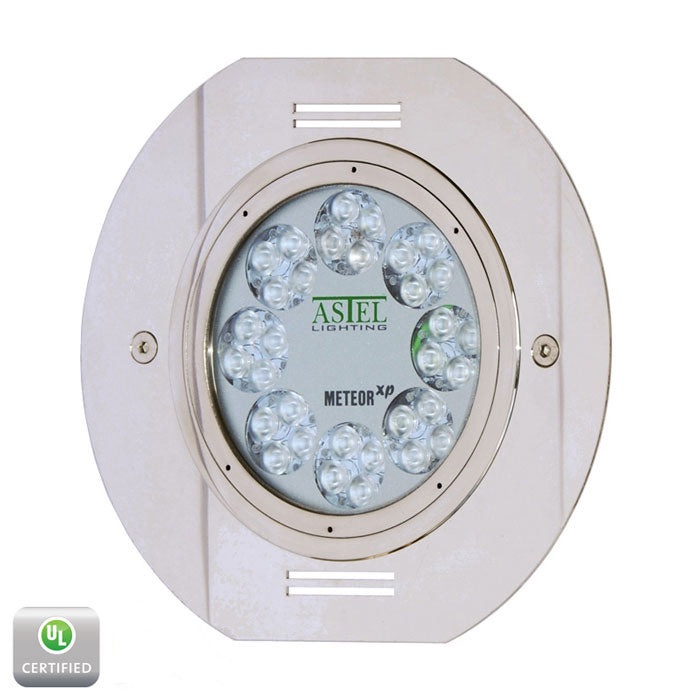

The METEOR series of compact ultra-thin UL® certified LED underwater pool lights with built-in driver

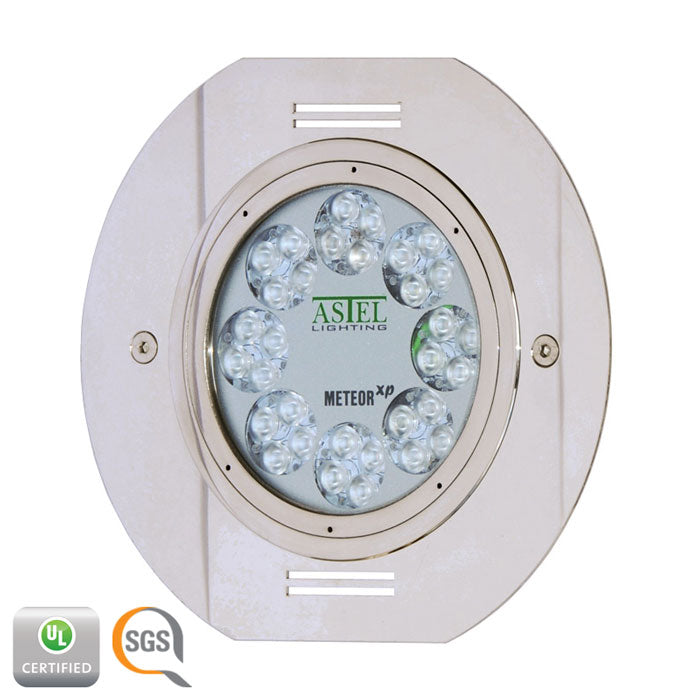

| METEOR XP LFR3210 | METEOR XP LFR3215 | |
|---|---|---|
| Color of lighting | Single Color (Warm White, Cool White, Blue, Green) or Multi Color (RGB, WGB, RGBW) | Single Color (Warm White, Cool White) |
| Power consumption | max. 127 W | max. 120 W |
| Luminous flux | max. 10.000 lm (cool white) | max. 15.000 lm (cool white) |
| Dimensions | Ф9.45 x 8.66 x 2.52 inch | Ф9.45 x 8.66 x 2.52 inch |
| Weight | 9.5 lbs | 9.5 lbs |
The multi-color version of METEOR series allows changing the color of lighting manually or automatically through the complete rainbow spectrum.
Advanced electronic design with built-in microprocessor enables network connection and simple control of complete group of lights with dimming.
All the models are available in stainless steel casings. The lighting is available in white, blue, green, WGB, RGB or RGBW color versions.
Technical Specifications
| Power supply | 12–24 Vdc, max. 10.6 A/12 Vdc or 4.8 A/24 Vdc (LFR3210) 12–24 Vdc, max. 10 A/12 Vdc or 4.5 A/24 Vdc (LFR3215) |
| Beam Angle | 30° (standard), 85° (wide), 15° (narrow) |
| Optical window | Tempered glass 8 mm |
| Luminous flux | max. 10.000/15.000 lm (cool white) |
| Operating temperature | 14°F – 122°F |
| Casing | Stainless steel (SAE316L) |
| Protection | IP 68 |
| Dimensions | Ф9.45 x 8.66 x 2.52 inch |
| Weight | 9.5 lbs |
Note: The wattage indicated is the maximum for the series equipped with 6.56 feet cable lengths, and may be lower for other color combinations.
Change color with the push of a button
METEOR series allows you to explore the complete rainbow spectrum by using only a simple momentary switch.
Also supports DMX512 network control for advanced users.
