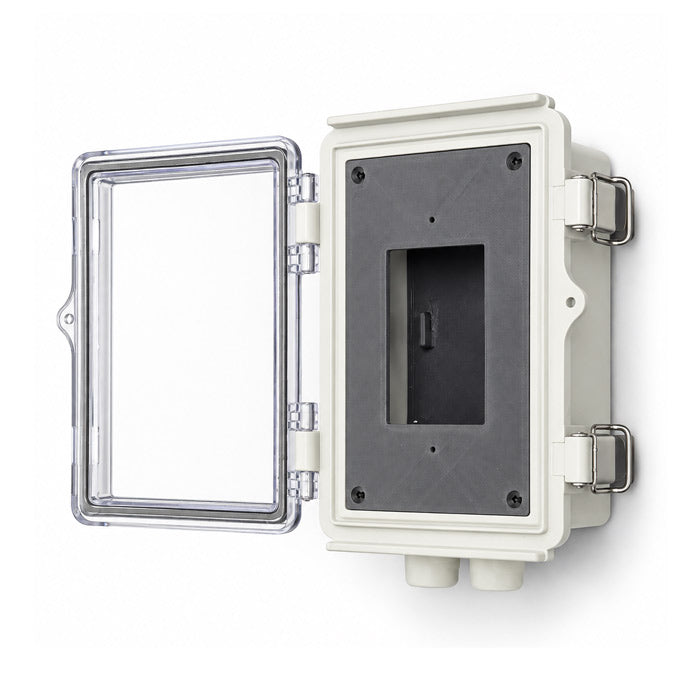

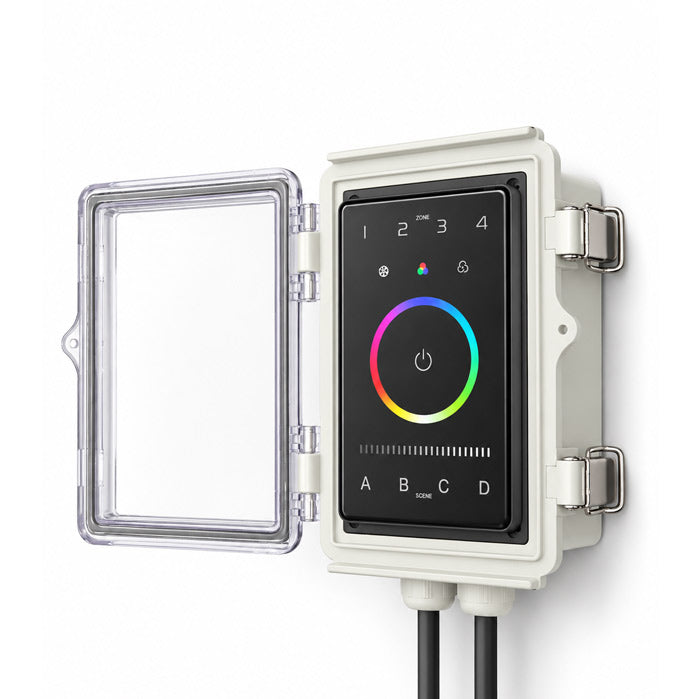

The LNC01 Lighting Control Enclosure is designed to simplify the installation of Astel Lighting UB4 and LXU01 control components in residential pool applications.

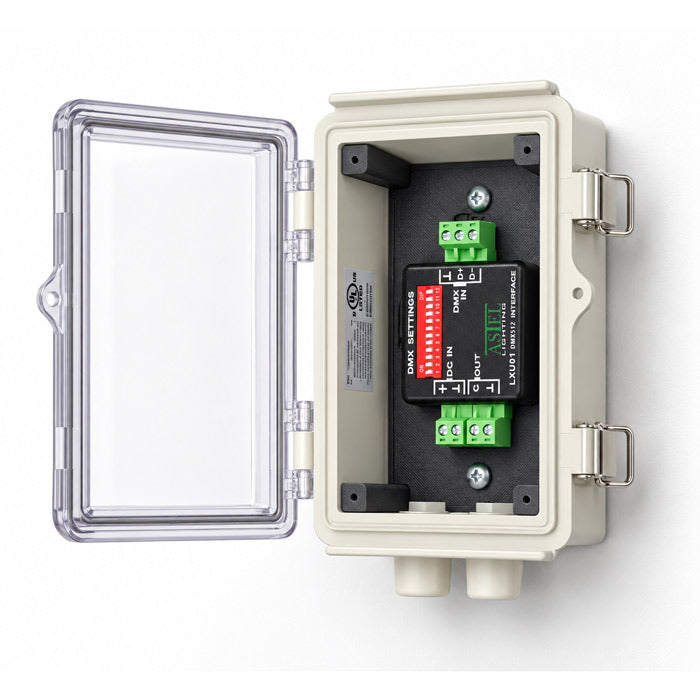

Supplied with a preassembled quick-connect wiring harness for pool lights, the LXU01 DMX512 interface and UB4 controller, the LNC01 reduces on-site wiring and provides a clean, organized installation of the lighting control system.

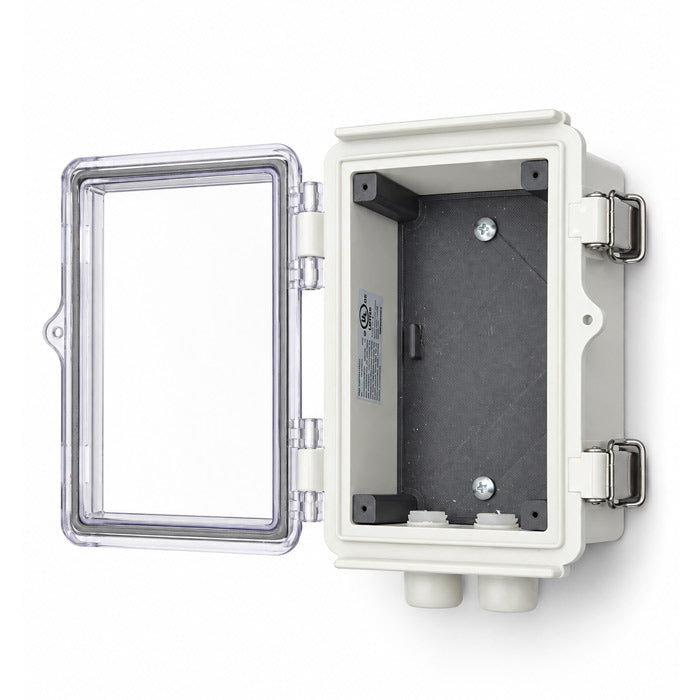

It incorporates a UL-listed, IP67 enclosure with a glass-fiber-reinforced polycarbonate body, clear hinged cover, stainless-steel latch and continuous gasket. The enclosure meets NEMA Type 6 requirements, is UL tested for Type 4X, and is suitable for outdoor exposure to UV, water and immersion in accordance with UL 746C.
Its durable construction and high level of environmental protection make it well suited for pool equipment areas and other demanding outdoor installations.

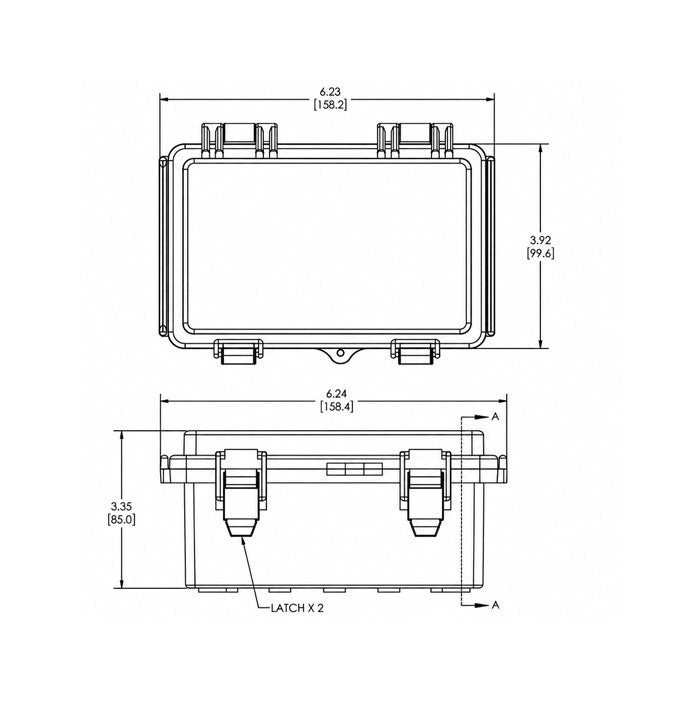

External Size L x W x D: 5.91" x 3.94" x 3.35"
DMX512 Interface LXU01 and DMX512 Controller UB4 are not included and are available separately.
