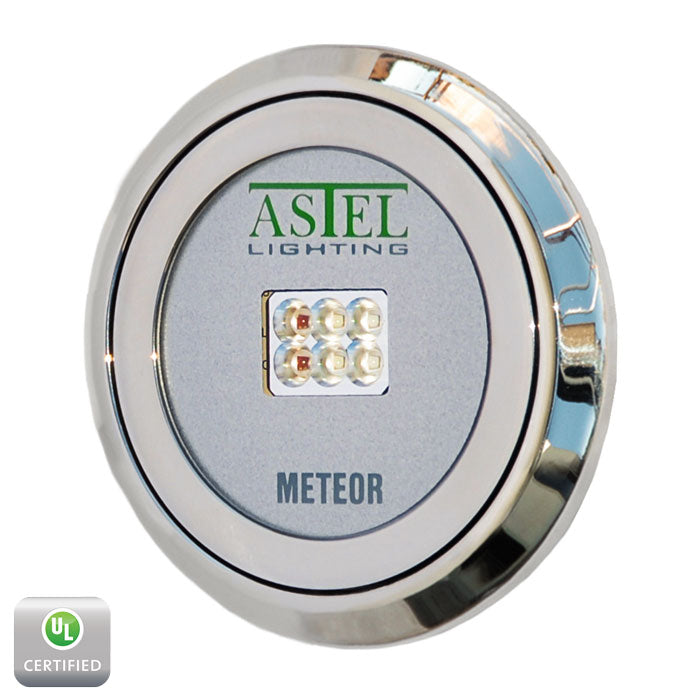

The METEOR series of compact ultra-thin UL® certified LED underwater pool lights with built-in driver

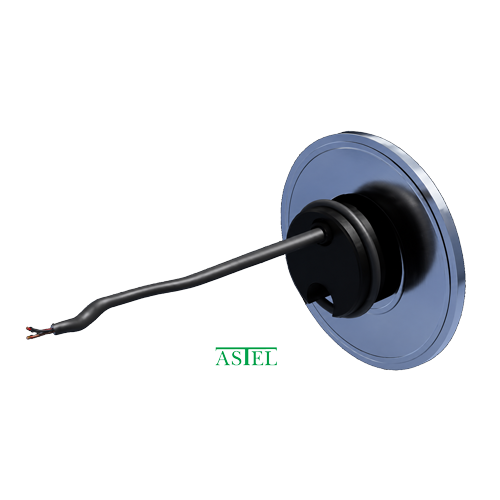

Designed for simple installation, the METEOR N-series lights are mounted into standard nicheless 1.5-inch threaded fittings using our simple push-in O-ring adapter design, eliminating the need for a traditional lighting niche.
|
|
|
|---|---|---|
| METEOR LSR0640N | METEOR LSR1280N | |
| Color of lighting | Single Color (Cool White, Warm White, Blue) or Multi Color (RGBW) | Single Color (Cool White, Warm White, Blue) or Multi Color (RGBW) |
| Power consumption | max. 10 W | max. 18 W |
| Luminous flux | max. 950 lm (cool white) | max. 1900 lm (cool white) |
| Dimensions | Ф3.11 x 1.26 inch | Ф3.9 x 1.26 inch |
| Weight | 0.66 lbs | 0.88 lbs |
The multi-color versions of the METEOR series are designed to support advanced control options, including DMX512 when used with an additional LXU01 interface LXU01.
It enables precise color management, synchronized operation of multiple fixtures, smooth dimming, and automated color-changing sequences across the full color spectrum depending on the controller.
All models are available with stainless steel housings. The METEOR series is offered in white, blue, green, red, RGB, and RGBW color configurations.
Our Main Advantages
-
Designed for simple installation
The METEOR N-series lights are mounted into standard nicheless 1.5-inch threaded fittings using our simple push-in O-ring adapter design, eliminating the need for a traditional lighting niche.
-
Ultra-Thin Patented Design
Our unique ultra-thin casing design allows for endless mounting options below the waterline.
-
Low Power Consumption
By using high-efficiency Cree LEDs and high-grade polycarbonate glass optical window our lights consume less power for the same luminance.
Technical Specifications
| Power supply | 12-24 Vdc, max. 840 mA/12 Vdc or 410 mA/24 Vdc |
| Beam Angle | 60° (standard) or 100° (wide) |
| Optical window | High-grade polycarbonate glass |
| Luminous flux | max. 950 lm (cool white) |
| Operating temperature | 14°F – 122°F |
| Casing | Stainless steel (SAE316L) |
| Protection | IP 68 |

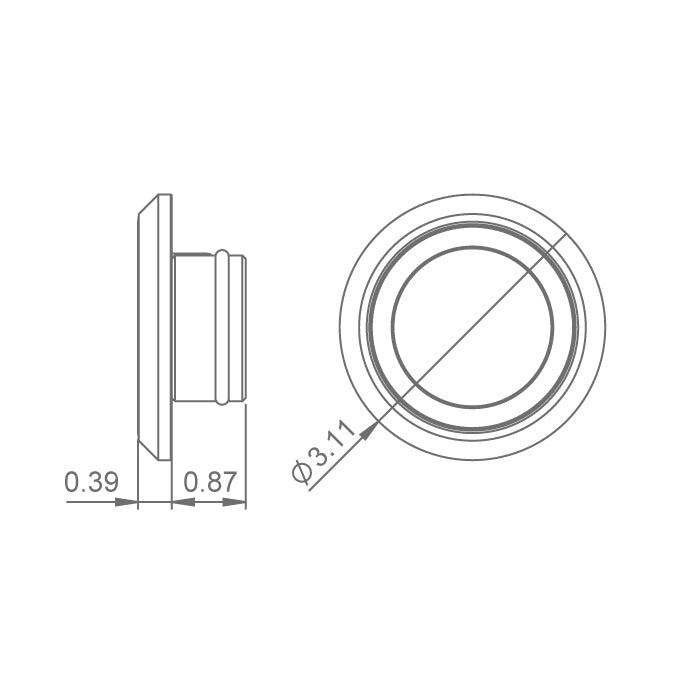

| Dimensions | Ф3.11 x 1.26 inch |
| Weight | 0.66 lbs |
Note: The wattage indicated is the maximum for the series equipped with 6.56 feet cable lengths, and may be lower for other color combinations.
No bonding required.
