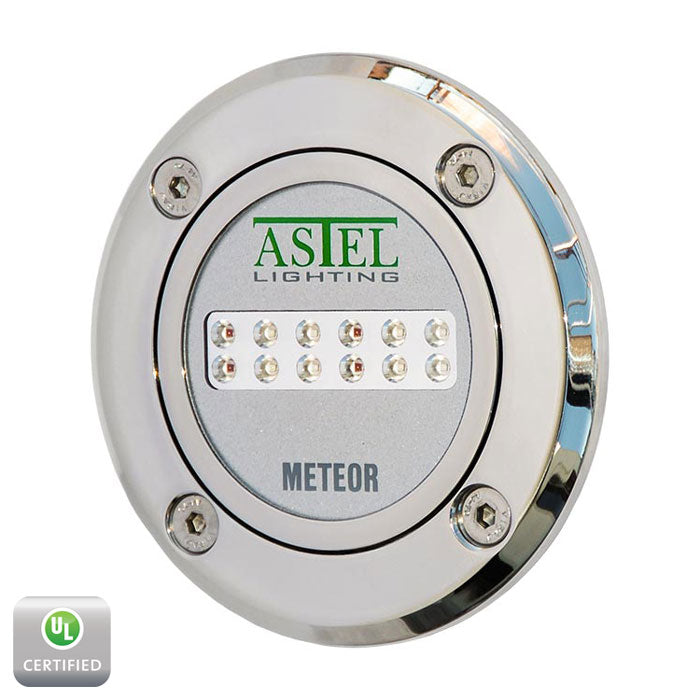

The METEOR series of compact ultra-thin UL® certified LED underwater pool lights with built-in driver
The METEOR series of underwater light's main feature is that they can be installed on the flat surface without any surface preparation during construction.
The thickness is only 0.39 inch and to install the METEOR lights the max. diameter of the hole through the wall is 2/5 inch.
|
|
|
|
|---|---|---|---|
| METEOR LSR0640 | METEOR LSR1280 | METEOR LSR36240 | |
| Color of lighting | Single Color (Cool White, Warm White, Blue) or Multi Color (RGBW) | Single Color (Cool White, Warm White, Blue) or Multi Color (RGBW) | Single Color (Cool White, Warm White, Blue) or Multi Color (RGBW) |
| Power consumption | max. 10 W | max. 18 W | max. 51.5 W |
| Luminous flux | max. 950 lm (cool white) | max. 1900 lm (cool white) | max. 5700 lm (cool white) |
| Dimensions | Ф3.9 x 0.39 inch | Ф4.69 x 0.39 inch | Ф5.47 x 0.39 inch |
| Weight | 0.88 lbs | 1.32 lbs | 1.76 lbs |
The multi-color version of METEOR series allows changing the color of lighting manually or automatically through the complete rainbow spectrum.
Advanced electronic design with built-in microprocessor enables network connection and simple control of complete group of lights with dimming.
All the models are available in stainless steel casings. The lighting is available in white, blue, green, WGB or RGB color versions.
Our Main Advantages
-
Easy Surface-Mount Installation
Thanks to the unique ultra thin surface-mount design, our lights can be easily installed on existing finished pools. Four screws and a cable hole require very little construction work.
-
Ultra-Thin Patented Design
Our unique ultra-thin casing design allows for endless mounting options below the waterline.
-
Low Power Consumption
By using high-efficiency Cree LEDs and high-grade polycarbonate glass optical window our lights consume less power for the same luminance.
Technical Specifications
| Power supply | 12-24 Vdc, max. 1.5 A/12 Vdc or 720 mA/24 Vdc |
| Beam Angle | 60° (standard) or 100° (wide) |
| Optical window | High-grade polycarbonate glass |
| Luminous flux | max. 1.900 lm (cool white) |
| Operating temperature | 14°F – 122°F |
| Casing | Stainless steel (SAE316L) |
| Protection | IP 68 |

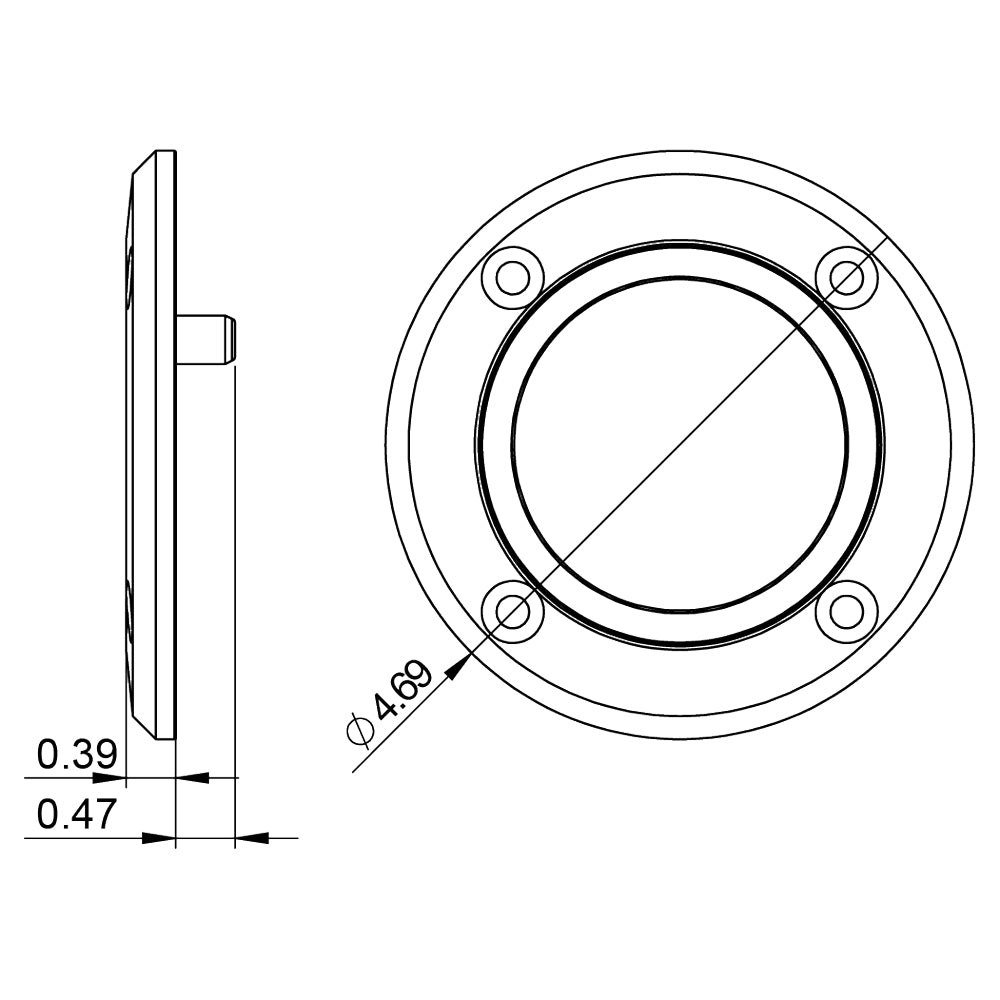

| Dimensions | Ф4.69 x 0.39 inch |
| Weight | 1.32 lbs |
Note: The wattage indicated is the maximum for the series equipped with 6.56 feet cable lengths, and may be lower for other color combinations.
Change color with the push of a button
METEOR series allows you to explore the complete rainbow spectrum by using only a simple momentary switch.
Also supports DMX512 network control for advanced users.
