WORLD’S FIRST UNDERWATER POOL LED LIGHT MADE ENTIRELY OF GLASS

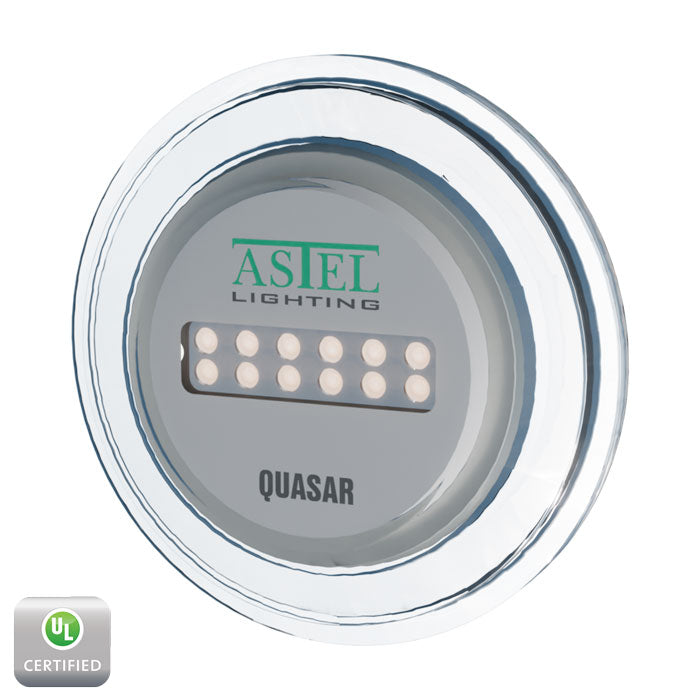

The QUASAR, a compact surface-mount low-profile underwater pool LED light with built-in driver is designed to use the latest LED lighting technology with consideration of the maximum extent from sustainable materials.
The casing is entirely made of thermally treated glass but at the same time is ensured to be easily installed without using of external metal parts.
|
|
|
|
|---|---|---|---|
| METEOR LSR0640N | QUASAR LSR12120 | METEOR LSR1280N | |
| Color of lighting | Single Color (Cool White, Warm White, Blue) or Multi Color (RGBW) | Single Color (Cool White, Warm White, Blue) or Multi Color (RGBW) | Single Color (Cool White, Warm White, Blue) or Multi Color (RGBW) |
| Power consumption | max. 10 W | max. 14.4 W | max. 18 W |
| Luminous flux | max. 950 lm (cool white) | max. 1900 lm (cool white) | max. 1900 lm (cool white) |
| Dimensions | Ф3.11 x 1.26 inch | Ф5.2 x 1.85 inch | Ф3.9 x 1.26 inch |
| Weight | 0.66 lbs | 1.54 lbs | 0.88 lbs |
The QUASAR, a compact surface-mount low-profile underwater pool LED light with built-in driver is designed to use the latest LED lighting technology with consideration of the maximum extent from sustainable materials.
The casing is entirely made of thermally treated glass but at the same time is ensured to be easily installed without using of external metal parts.
The design ensures excellent waterproofing as well as optimal lighting properties.
The single-color or multi-color versions allow changing the color of lighting through the complete color spectrum by using of optional DMX512 controllers and simple control of complete group of lights with dimming.
Our Main Advantages
-
Designed for simple installation

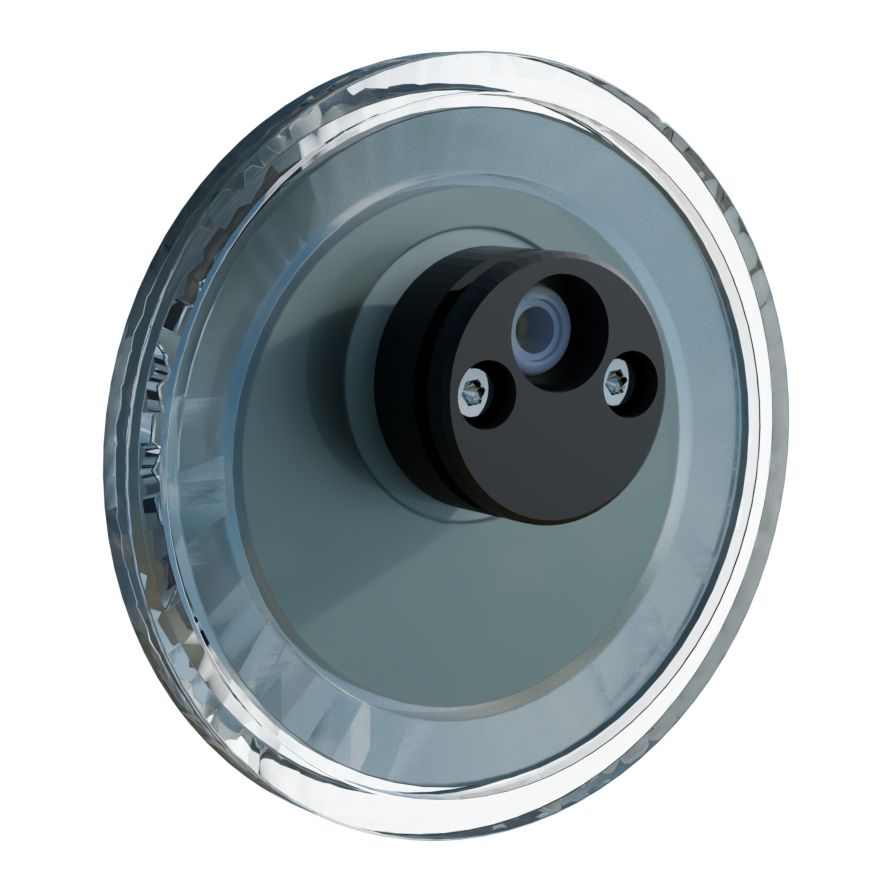

The QUASAR lights are mounted into standard nicheless 1.5-inch threaded fittings using our simple push-in O-ring adapter design, eliminating the need for a traditional lighting niche.
-
Thermally Treated Glass Casing
Designed to use the latest LED lighting technology with consideration of the maximum extent from sustainable materials.
The casing is entirely made of thermally treated glass but at the same time is ensured to be easily installed without using of external metal parts.
-
Low Power Consumption
By using high-efficiency Cree LEDs and high-grade polycarbonate glass optical window our lights consume less power for the same luminance.
Technical Specifications
| Power supply | 12-24 Vdc, max. 1.2 A/12 Vdc or 550 mA/24 Vdc |
| Beam Angle | 60° (standard) or 100° (wide) |
| Luminous flux | max. 1900 lm (cool white) |
| Operating temperature | 14°F – 122°F |
| Casing | Thermally treated glass |
| Protection | IP 68 |

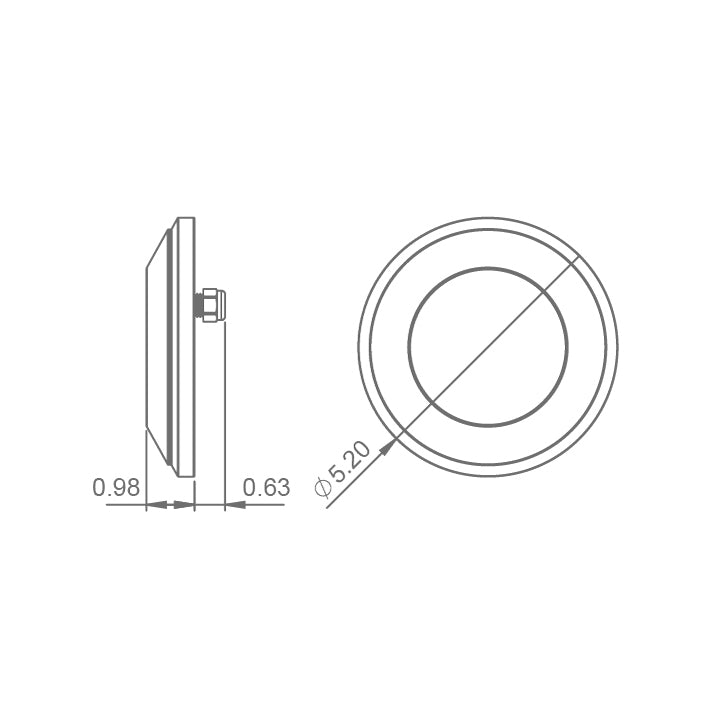

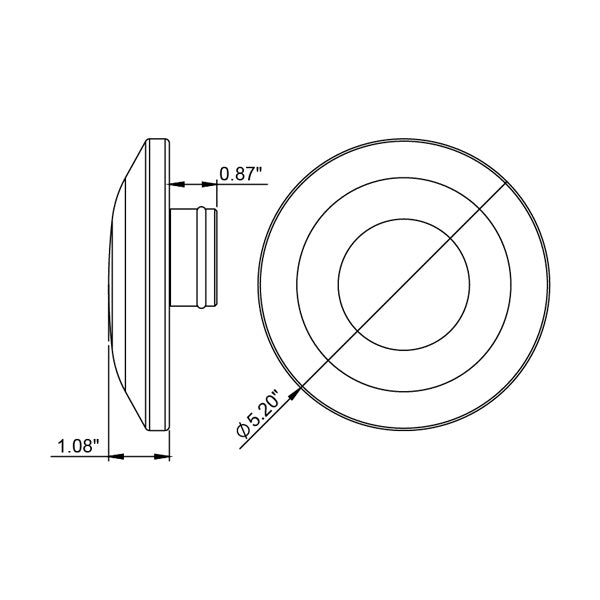

| Dimensions | Ф5.2 x 1.85 inch |
| Weight | 1.54 lbs |
Note: The wattage indicated is the maximum for the series equipped with 6.56 feet cable lengths, and may be lower for other color combinations.
No bonding required.
